Modern Multifamily Design Matching Local Homes

Background

A developer aimed to build a multifamily complex in Arlington, Massachusetts. The plan was to include four units, each with multiple bedrooms and bathrooms, along with plenty of parking for tenants and their guests.

Project Details

Company: Brown, Fenollosa Architects

Role: Architectural Drafter and 3D Designer

Plans and Elevations

These plans and elevations were primarily created for client presentations. While they include some technical information, their main purpose is to illustrate the spaces and how the building interacts with the site. These plans, elevations, and renderings were also used during meetings with local state offices to obtain approval for the project.

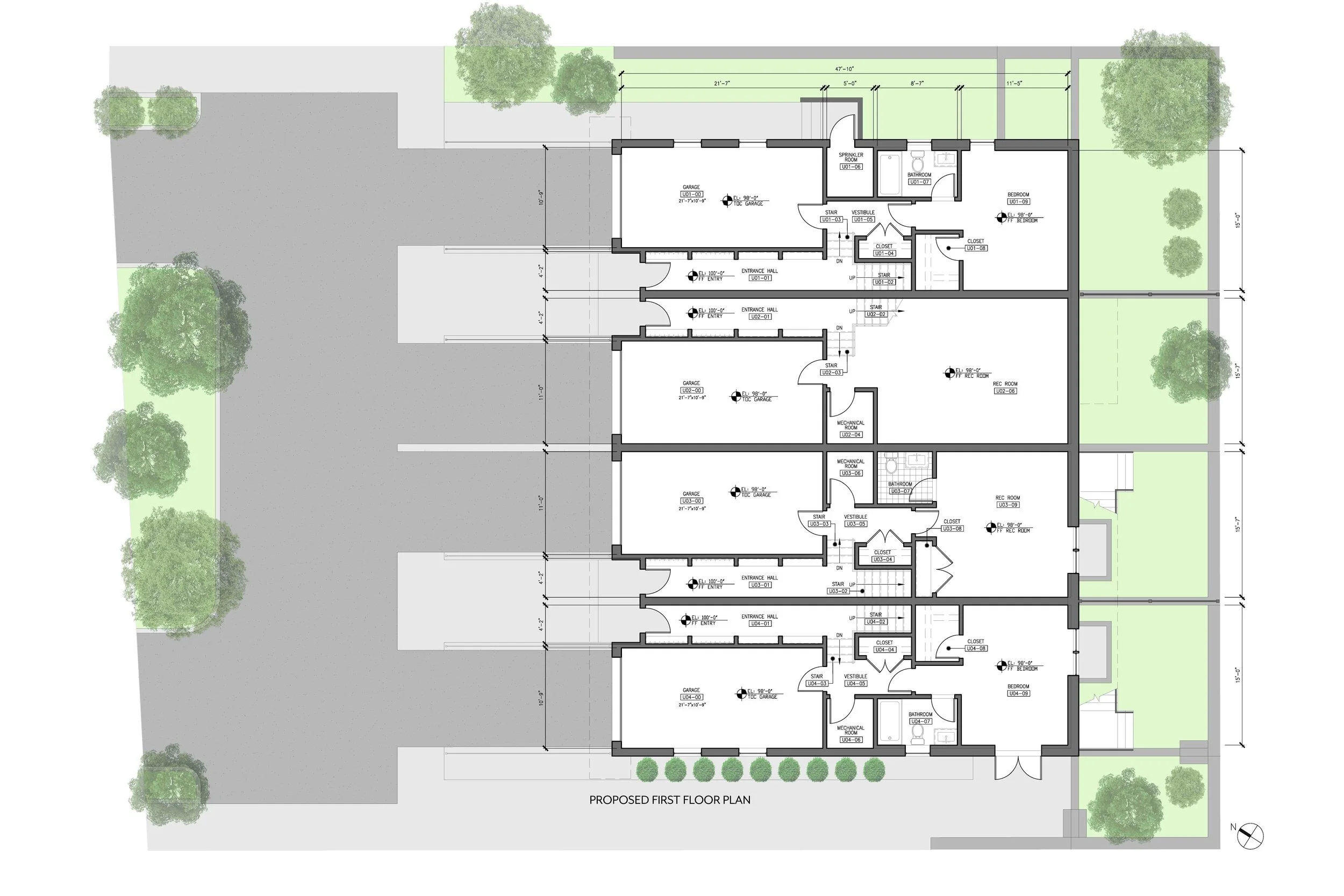

Architectural blueprint of a building's first floor with room labels, measurements, and surrounding landscaping, including trees and green areas.
Architectural second-floor plan for a multi-unit residential building showing individual apartment layouts, green outdoor areas, and surrounding trees.

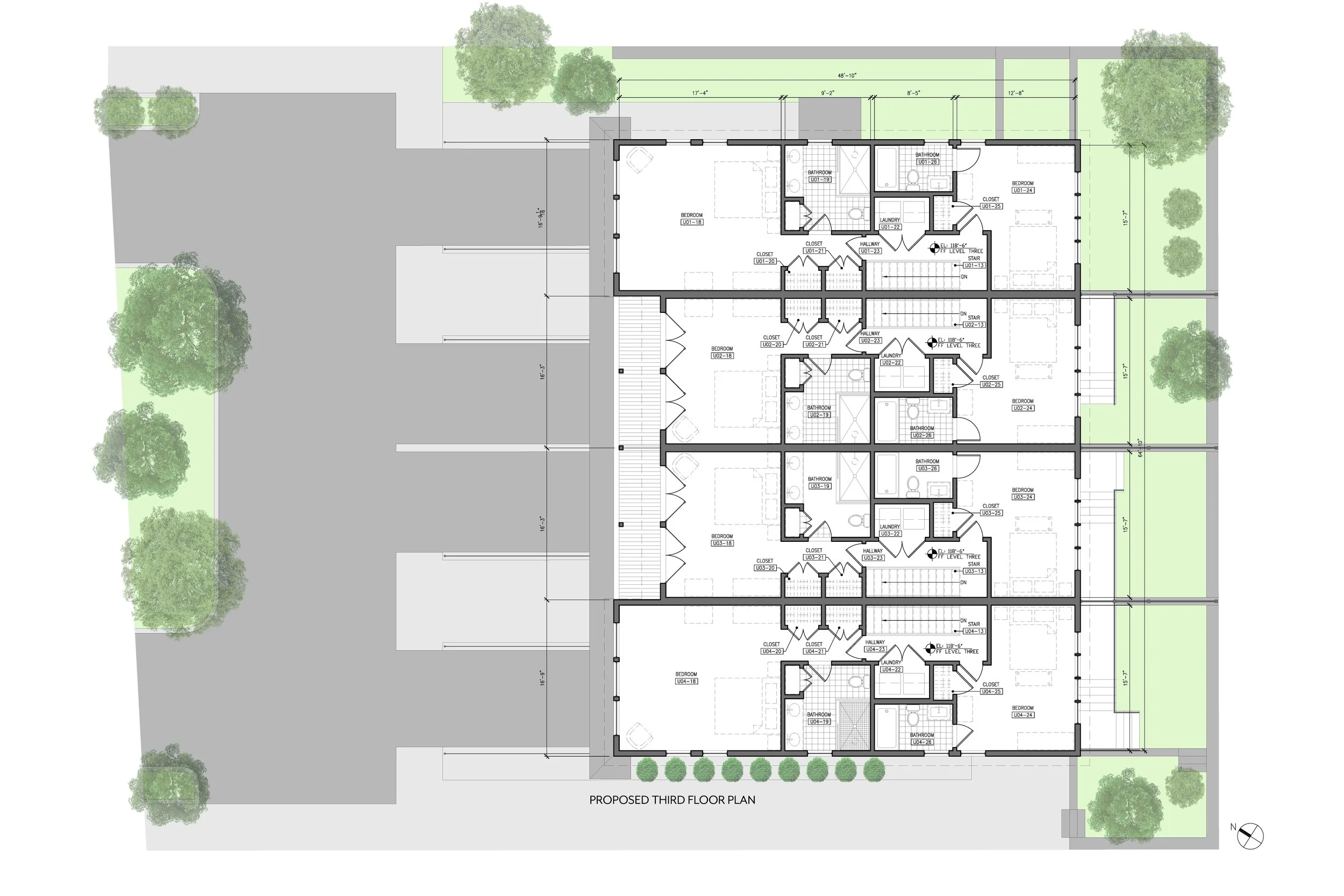

Architectural floor plan of a proposed third-floor layout with labeled bedrooms, bathrooms, closets, and hallways, surrounded by trees and outdoor green areas.

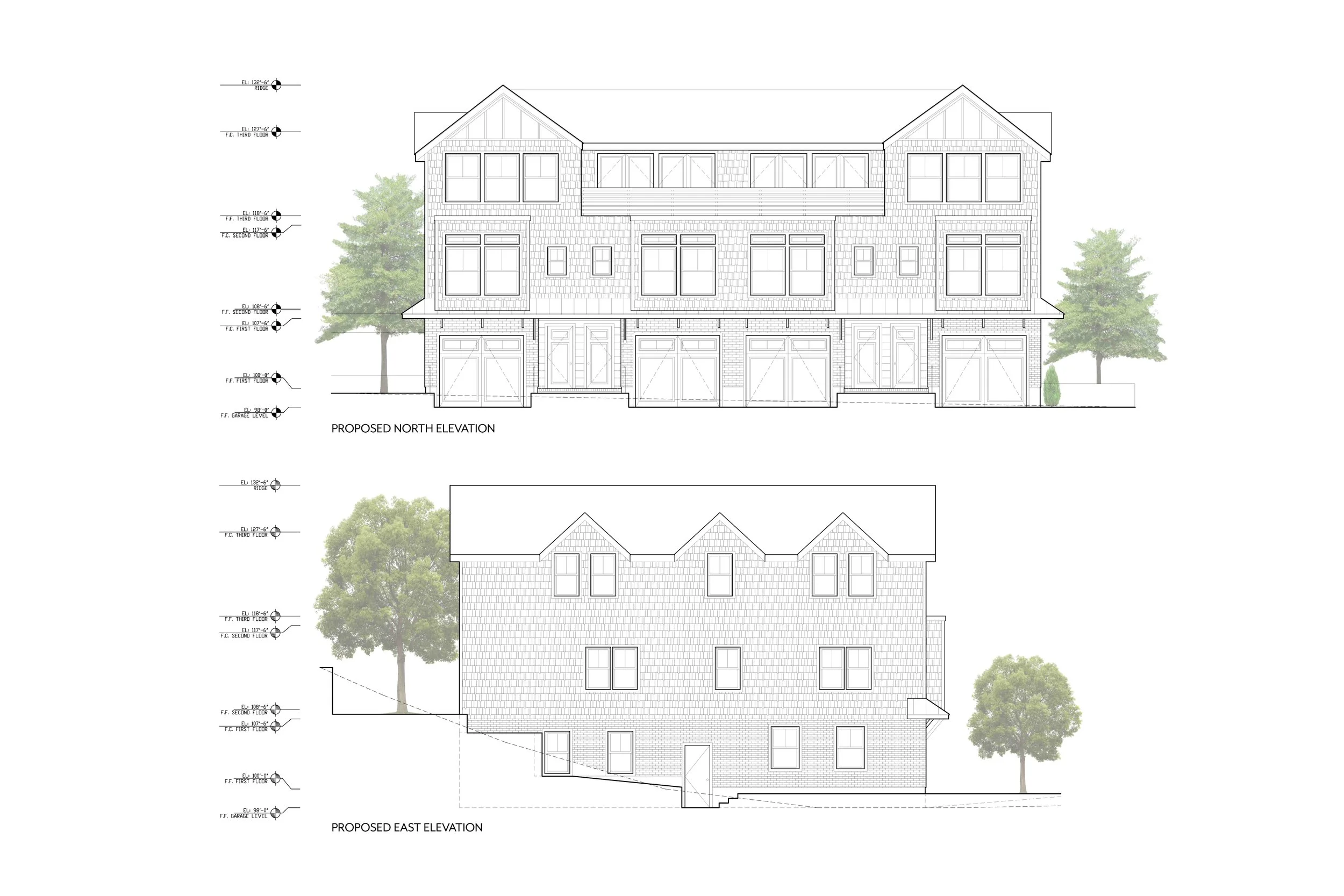

Architectural elevation of a proposed multi-story residential building, showing north and east elevations with trees.

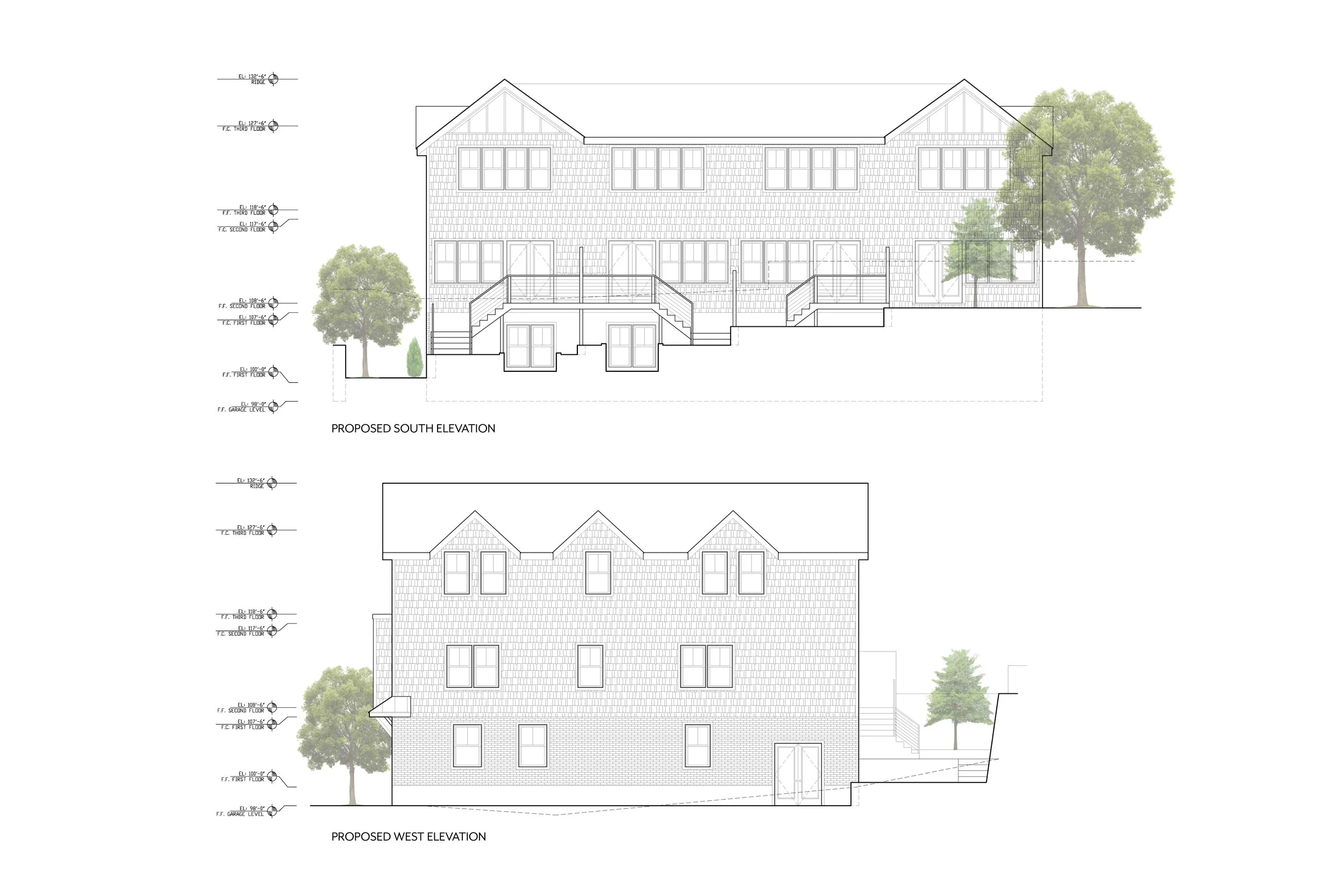

Architectural elevation of a residential building showing proposed south and west elevations with trees in the background.
